Crimping

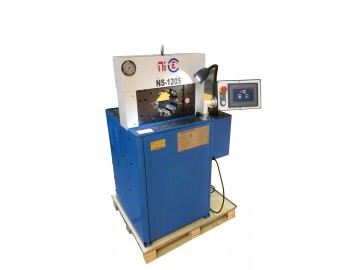

NS-120S

technical data

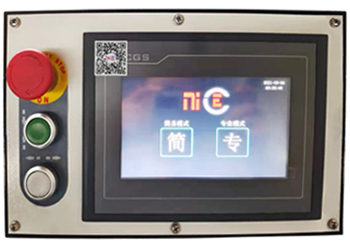

NC Control

The maximum diameter of withholding

2"6S

Working range(mm)

Φ 4-87

Main die length(mm)

97

Standard voltage

380V/50Hz

Motor power

4kW

Optional voltage and power

220V/4kW

pumping(l/min)

23L

Withhold number (per hour)

1900

Noise value(dB)

70

Die extensor(mm)

Φ+68mm

Buckle pressure(kN)

2480

Electronic limit switch

Include

Electronic display screen

Include

Electric foot switch

Include

Manual mode change

Include

Oil temperature cooling system

Include

Size: long x width x high(mm)

590x635x1280

Net weight: (no oil)

800Kg
